BRS Series — Rotary Pouch Fill-Seal Packing Machines

The BRS rotary series arranges pouch loading, opening, filling and sealing around a compact carousel, with hot-stamp coding and a monitored output conveyor. Nozzle diameters from 6.5–20 mm handle powders, granules, liquids, viscous products and solids at metering accuracy within ±1.0%. Built on premium components throughout: Schneider PLC, touch screen and servo motors, Autonics (Korea) photocells, ABB main motor, and SMC (Japan) pneumatics and vacuum generators.

Models

Model	Heads	Bag Size	Capacity & Speed	Notes
BRS-1 / 2	1–2 filling heads	Max bag 160 × 210 mm	300 ml / 3 kg · 60–80 ppm	Entry rotary pouch filler-sealer for flat pouch, doypack and zipper pouch — compact single/twin-head footprint.
BRS-4S	4 filling heads	Max bag 200 × 300 mm	2,000 ml · 3,800–6,200 bags/h	Four-head rotary bag feeder — metering accuracy within ±1.0%, hot-stamp coding, monitored output conveyor.
BRS-6S	6 filling heads	Max bag 250 × 300 mm	2,000 ml · 5,700–9,200 bags/h	Six-head high-output rotary — same premium Schneider/ABB/SMC component package at enterprise speeds.
BRS-4S → 12S	4–12 filling heads	Max bag 250–300 mm	2,000 ml · up to 9,200 bags/h	Rotary spout-pouch filling & capping for juice, detergent, oil and sauce — fully automated pick-fill-seal engineered for maximum OEE.

BRS-1 / 2

Entry rotary pouch filler-sealer for flat pouch, doypack and zipper pouch — compact single/twin-head footprint.

1–2 filling headsMax bag 160 × 210 mm300 ml / 3 kg · 60–80 ppm

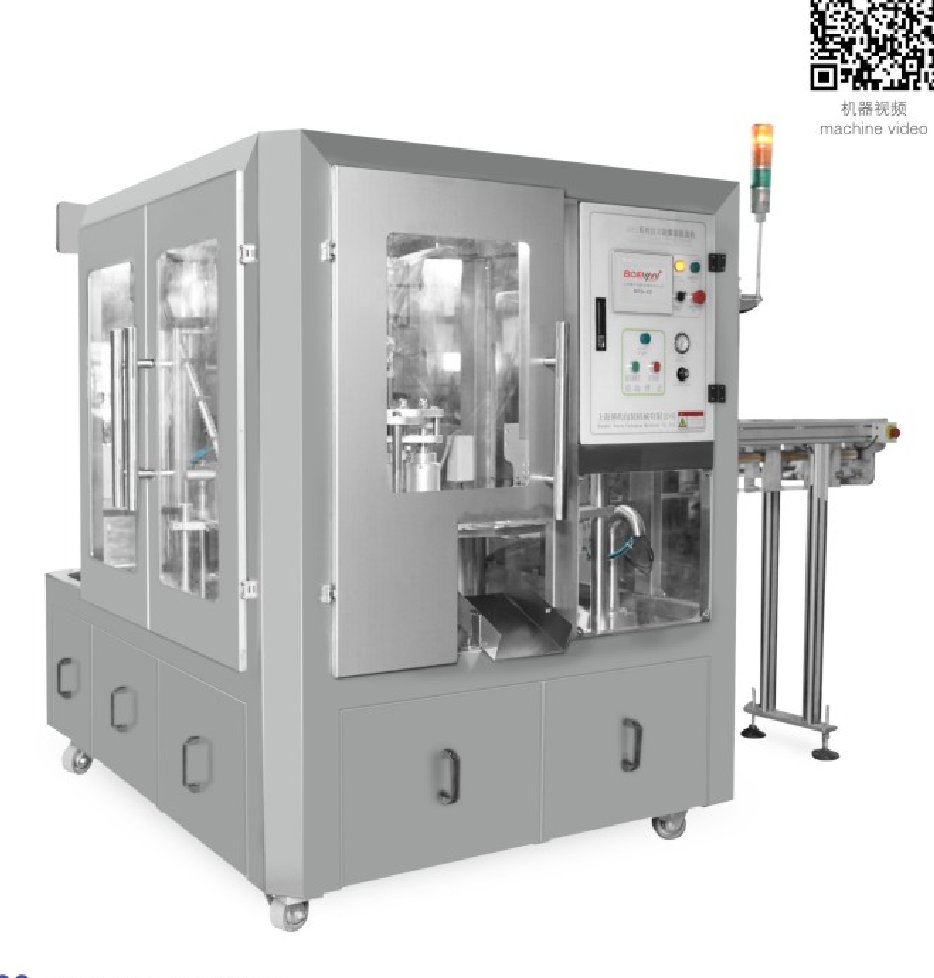

BRS-4S

Four-head rotary bag feeder — metering accuracy within ±1.0%, hot-stamp coding, monitored output conveyor.

4 filling headsMax bag 200 × 300 mm2,000 ml · 3,800–6,200 bags/h

BRS-6S

Six-head high-output rotary — same premium Schneider/ABB/SMC component package at enterprise speeds.

6 filling headsMax bag 250 × 300 mm2,000 ml · 5,700–9,200 bags/h

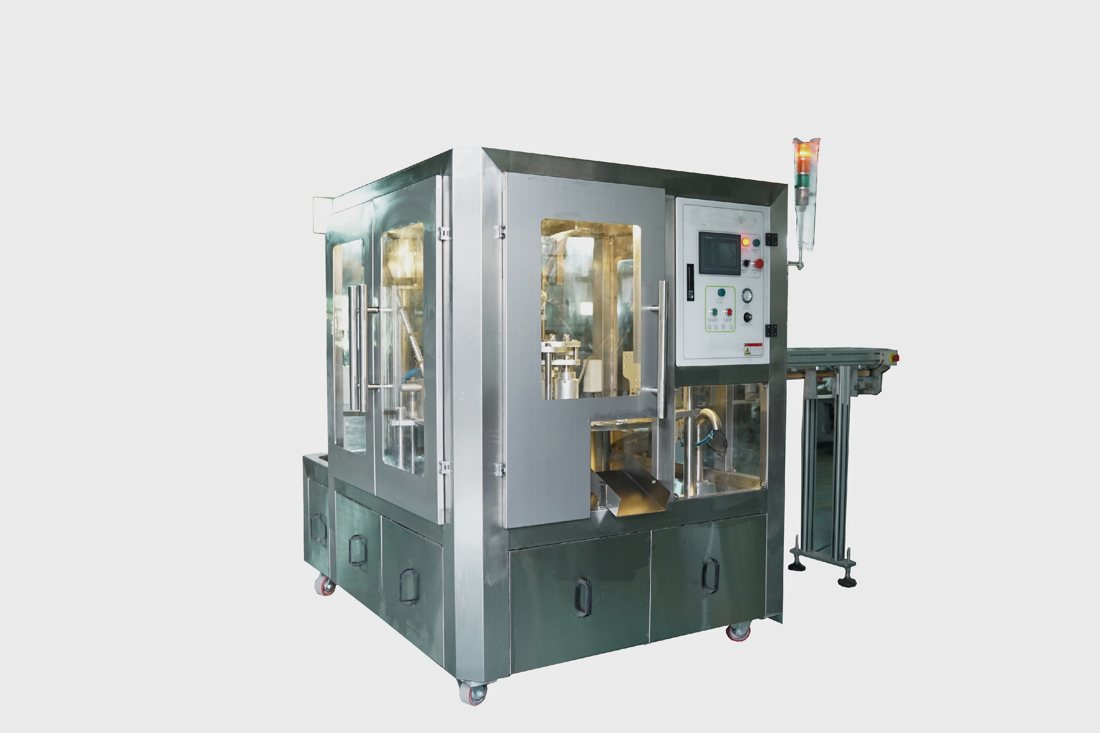

BRS-4S → 12S

Rotary spout-pouch filling & capping for juice, detergent, oil and sauce — fully automated pick-fill-seal engineered for maximum OEE.

4–12 filling headsMax bag 250–300 mm2,000 ml · up to 9,200 bags/h

Optional configurations

Dosing

Servo auger filler · volumetric cup · multi-head weigher & linear scale · tablet/capsule counter · piston pump

Control

Mechanical drive with auger control · full-servo control for rapid changeover and positioning accuracy

Hygiene

Laminar flow hood (Class 100/1000) · UV, pulsed-light & H₂O₂ sterilization · water-bath sterilization · CIP/SIP

Inspection & line

Metal detection · checkweigher · vision inspection · secondary packing · palletizing

Request a BRS Series quotation

Include your product, target pouch size and speed — minimum order 1 set, typical lead time 60 days.
